NS-BS1-V36D (Boom Barrier)

About this product

  • NS-BS1-V36D is a DC Brushless Servo motorized toll boom barrier. are the fastest toll barriers available with an opening e as fast as 0.6 seconds.
  • It's newly designed, maintenance-free with TimeWatch Micro Drive unit and offers 100% more torque and 100% duty free.
  • NS-BS1-V36D is very fast toll barriers available with an opening time of as fast as 0.6 seconds.
  • This barrier redefines performance in non-stop toll applicant and is the ideal selling for very high frequented toll stop operation providing great reliability and sustainability.
Specifications

Speed 0.6s
Arm Type 3m
Opening Time (Sec) 0.6s
Motor Rated Power 100W
Duty cycle 100%
Supply voltage 220V, or DC24V/12V
Frequency 50HZ/60HZ
Drive system SFMCU
Housing Dimensions 980*330*285mm
Weight (without boom) Mechanism: 23kgs, Gate: 45KGS
Protection Class IP54
Temperature range 35 to 70 ℃

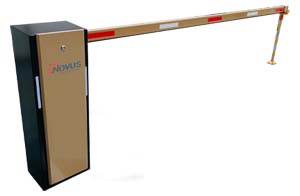

Related Products
