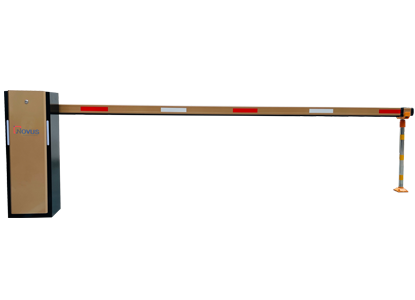

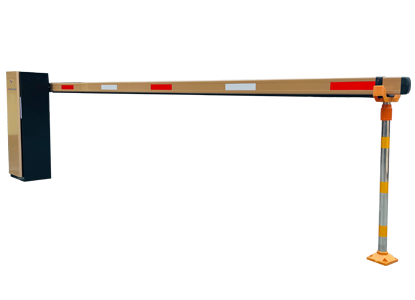

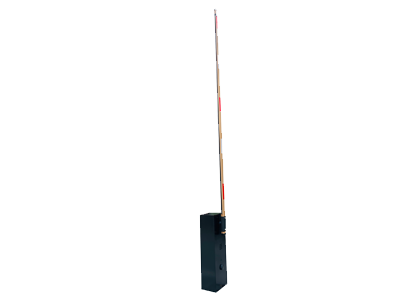

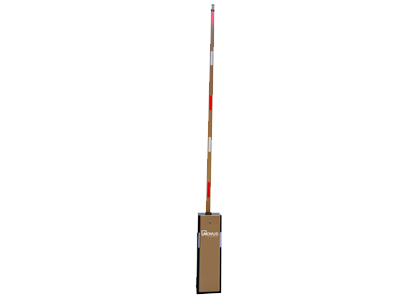

NS-BS1-V60D (Boom Barrier)

About this product

  • It is equipped with a temperature control capacitor to ensure proper operation even in temperatures below -15°C.
  • The system features a simple structure with an Aluminum wave box.
  • The gate movement employs a crank rocker transmission mechanism, which offers a compact structure, improved rigidity, and convenient maintenance and operation.
  • The movement of the gate can be adjusted for left and right movement as needed.
  • When the brake rod is in a horizontal or vertical position, the movement structure automatically locks itself.
  • It provides effective protection for the reducer against external force impact.
  • Compared to conventional gate movements, this system reduces the number of parts by approximately 20%, resulting in fewer faults and improved reliability.
Specifications

Appearance Dimension Length, width, and height 350x281x1000
Power Supply 220V ± 10% 50 ~ 60Hz
Voltage AC110V/220V 24v150w brushless 2-stage variable speed all copper DC motor ≤ 30m
Waterproof Grade IP45
Working Environment -30 ~ +70 ℃ Full-thickness 1.5mm
Operating Speed Rod lifting 1.8s-4s adjustable (the specific operating speed is adjusted according to the rod type and rod length)
Motor Capacity 24V DC Brushless Motor
