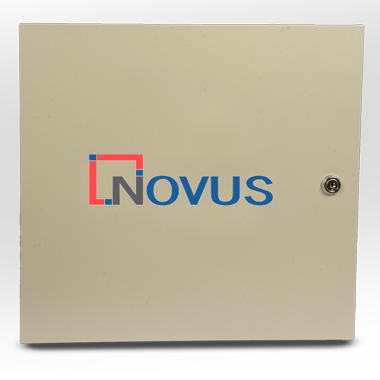

Network Access Control (NS-CS1-V2270 / V4270)

About this product

Utilizes TCP/IP network communication and features a self-adaptive network interface.
High-speed processor operating at 32 bits
All communication data is encrypted to guarantee information security.
Capable of storing card numbers with a maximum of 20 digits.
Offers extensive storage capacity, accommodating up to 100,000 cards (expandable to 200,000) and 300,000 access control events (expandable to 600,000).
Includes online upgrade capability and allows remote control of the doors through online access.
Supports multiple advanced functions, including multi-door interlocking, passback functionality, multi-card capability, first card functionality, super card usage, and super password functionality.

Enquiry View More

Specification Related Products Download

Specifications

Novus Model	NS-CS1-V2270	NS-CS1-V4270
Door	2 Door	4 Door
Processor	32 bit	32 bit
Uplink Communication	TCP/IP, RS-485	TCP/IP, RS-485
Reader Interface	RS-485, Wiegand (W26/W34)	RS-485, Wiegand (W26/W34)
Card Reader	2 Readers (Card In/Button out) (Wiegand) OR (2 In/Out) Readers (RS485)	4 Readers (Card In/Button out) (Wiegand) OR 8 (4 In/Out) Readers (RS485)
Output Interface	Door Relay × 2, Alarm Relay × 4	Door Relay × 4, Alarm Relay × 4
Door Contact	2	4
Storage	Cards/User Information: 100,000, Access Control Events: 300,000	Cards/User Information: 100,000, Access Control Events: 300,000
Functions	Anti-Pass Back, Multi-Card Function, First Card Function, Super Card, Door Interlocking	Anti-Pass Back, Multi-Card Function, First Card Function, Super Card, Door Interlocking
Led Indicator	Power Supply Status, Communication Status, Working Status	Power Supply Status, Communication Status, Working Status
Built-in Clock	Yes	Yes
Working Voltage	DC 12V/1A	DC 12V/1A
Power Consumption	≤4 w (without load)	≤100 w (without load)
Working Tempratue	-20°C to +65°C (-4°F to +149°F)	-20°C to +65°C (-4°F to +149°F)
Working Humidity	10% to 90% (non-Condensing)	10% to 90% (non-Condensing)
