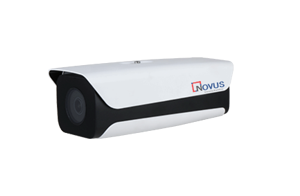

ANPR (NS-LPR2150)

About this product

  • Used in traffic control systems.
  • Utilizes advanced CMOS image sensor for vehicle information capturing.
  • Utilizes deep learning algorithm for precise recognition of vehicles.
  • It can capture vehicle model, logo, series, color, etc.
  • Offers multiple signal, data, and communication interfaces.
  • Equipped with built-in LED illuminator for easy installation.
Specifications

Illuminator Number 6 IR illuminators, brightness adjustable
Image Sensor 1/2.8'' CMOS
Image Resolution 1920 × 1080 (OSD black strip excluded)
Video Resolution PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps) NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)
Bit Rate H.264B: 32Kbps–32768Kbps H.264M: 32Kbps–32768Kbps H.264H: 32Kbps–32768Kbps H.265: 32Kbps–32768Kbps MJPEG: 512Kbps–65536Kbps
Video Compression H.264B/H.264M/H.264H/H.265/MJPEG
Picture Encoding Format JPEG
Noise Reduction 3DNR
White Balance Full auto, auto color temperature range, customized color temperature
Electronic Shutter Speed 1/50–1/10000, auto or manual< /td>
WDR 96 db
Edge Enhancement Yes
Exposure Mode Full auto, customized auto, customized
Iris Control Auto iris (W: 1.6–T: 3.3)
Trigger Mode Video detection; I/O coil; video detection and I/O coil
Shutter Single shutter
Storage 1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G
Image Tampering Prevention Yes. Video/picture can be checked through watermark and verification
Field of View Horizontal: 108.1° (W)–30.3° (T); Vertical: 56.3° (W)–17.1° (T); Diagonal: 130.9° (W)–34.8° (T)
Illumination Distance 12 m (39.37 ft)
Capture Range 3 m–6 m (9.84 ft–19.69 ft)
Detected Lane Width 3 m –4 m (9.84 ft–13.12 ft)
Min Ambient Illuminance 0.002 Lux. Illuminator is designed with the camera for illumination
Max Speed that the Camera Detects 30 km/h
Alarm Event Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access
Security Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
OSD Overlay Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)
Automatic Network Replenishment (ANR) Yes. Platform/FTP
Auto Registration Yes
Vehicle Detection Vehicle capture rate ≥99%
Vehicle Recognition Supports recognizing vehicle type, vehicle logo, vehicle series, vehicle color, license plate, features of driver and front-seat passenger, and vehicle without plate. Vehicle recognition rate ≥95%
Video Metadata Yes
Intelligent Track Frame Intelligent frame display. Supports displaying vehicle plate and vehicle path
Lens Mount Φ14
Analog Output 1
Network 1 100/1000M Ethernet port (RJ-45)
RS-485 2
RS-232 1
Alarm Input 3, optocoupler input (on-off input)
Alarm Output 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers
Audio Input 1-channel RCA port
Audio Output 1-channel RCA port
Power Supply 12V DC, 24V AC, PoE+
Power Consumption <20W
Operating Temperature −30°C to +65°C (−22°F to +149 °F)
Operating Humidity 10%RH–90%RH (no condensation)
Casing Metal and plastic
Protection Grade IP67
Dimensions 486.7 mm × 124.3 mm × 185.5 mm (19.16'' × 4.89'' × 7.30'') (L × W × H)
Net Weight 1.9 kg (4.19 lb)
Gross Weight 3.3 kg (7.28 lb)
Installation Installed with bracket
Lens 3.2 mm –10.5 mm
