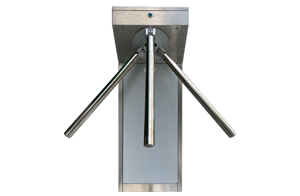

Semi Automatic Turnstile Gate (NS-TS1-V22D0)

About this product

  • The semi-automatic tripod turnstile is powered by a DC brushless motor, providing a smooth and effortless passage for individuals with minimal resistance.
  • In case of a power outage, the turnstile's beams will automatically lower, and they will rise again once power is restored.
  • It offers multiple working modes, including bi-directional and single-directional, and all these modes can be easily configured using the buttons on the main control board.
  • The system is also equipped with obstacle detection capabilities, automatically stopping when encountering any obstruction.
  • It can be seamlessly integrated with additional functions and face detection biometric systems, enabling touchless operation for enhanced convenience.

Dimension 380*260*980
Material 304 original brushed stainless steel, acrylic
Channel Width 510mm
Thickness The full thickness of the outer box is 1.0 + 1.2mm
Traffic Direction One-way traffic/two-way traffic
Traffic Speed 25~30 people/min in normally open mode and 15~20 people/min in normally closed mode; The actual traffic speed is different from the traffic environment and personnel
Opening Mode ID / IC card swiping and other reading head verification opening, button opening, etc
Opening Signal Dry contact signal
Life ≥5 million times
Power 30-60W
Applicable Temperature -20~75 ℃ (add thermostat below this temperature)
Type Bridge Type
